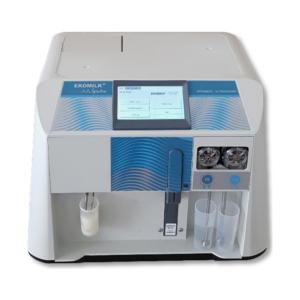

EKOMILK Spectra Hybrid Milk Analyzer Mid Infrared and Ultrasound Technology
Product Specifications
| Measuring parameters: Adulterants (Mid-infrared) *: |
Limit of detection % |
| Ammonium sulfate |
0.10 ± 0.05 (abs.) |
| Urea |
0.20 ± 0.05 (abs.) |
Melamine
Nitrates (ammonium potassium, sodium,…) Carbonates/Bicarbonates
(ammonium, potassium,…)
Sweeteners (sucrose,Maltodextrin) Added water |
0.10 ± 0.05 (abs.)
0.05 ± 0.03 (abs.)
0.05 ± 0.03 (abs.)
0.08 ± 0.05 (abs.)
0.9 ± 0.5 (abs.)
20 ± 5 (abs.) |
| Synthetic milk (veg.oil, urea, detergent, water) |
20 ± 5 (abs.) |
| Non-milk fat |
1.5 ± 0.5 (abs.) |
Overview
EKOMILK Spectra is a mid-infrared and ultrasound hybrid Milk Analyzer. It brings the best from both technologies together using ultrasound for proven, cost-efficient and robust measurement of milk parameters and mid-infrared for fast, highly sensitive detection of adulterant concentrations. Along with the milk parameters measurement and adulteration monitoring this new generation of hybrid milk analyzer provides an on the field comfortable, fast and cost effective way for collecting, processing and saving all data about the volume and quality of the milk supplied by each of the milk vendors. As a future development this analyzer will also provide real time calculation of vendor payment amounts. All these data can be easily transferred later by an USB Flash drive (pen) to a PC for further processing and archiving.
Features & Benefits
Key Features:
Fast adulterant detection & Fat, SNF, etc. corrections
Cost effective;
Simple and lightweight design;
Automatic cleaning of the infrared module;
No acids or other chemicals used;
Data collection system;
4.3” TFT Display with resistive touch screen(full color)
RS232/USB/Bluetooth/Wi-Fi/Ethernet interfaces;
USB port with flash drive, keyboard & mouse support;
Multi-language menu translations;
Remote calibration procedure;
Remote firmware update;
pH Measurement module (optional);
Measurement data print-out (optional);
Data Processing & Payment System (optional);
Customized milk calibration – goat, sheep, camel, llama (optional).
