Cascade System ULT Laboratory Freezer Refrigerator
MDF-86V Series
OVERVIEW
Mether Cascade System ULT refrigerator has the most proven cascade system technology which has the characteristics of stable performance, easy maintenance and long term storage of various biological products.

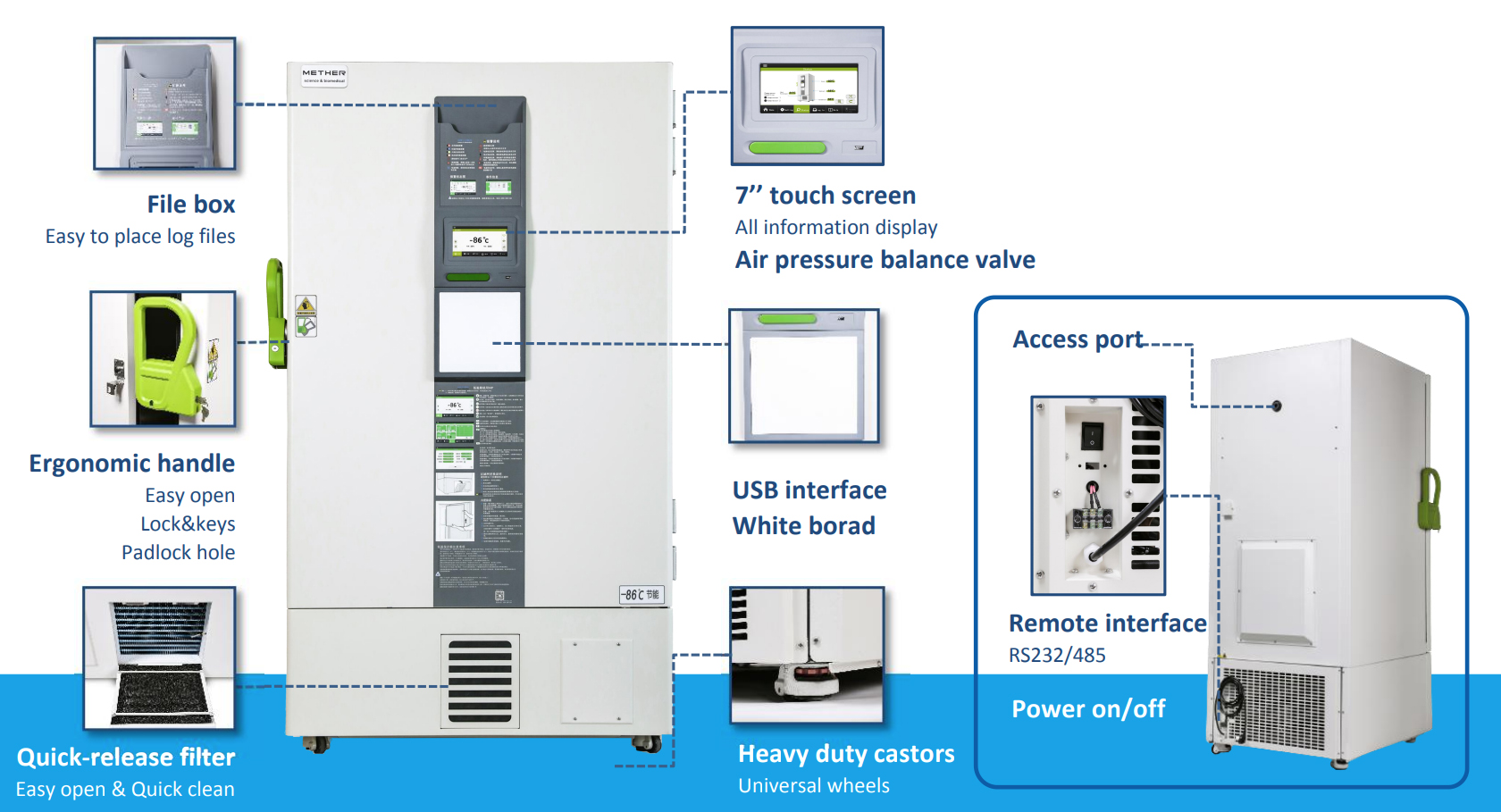

FEATURES
7″ LCD Touch Screen
ULT freezer with 7 inch touch LCD screen easy operation and observaion ,monitor all data during the running ,also have USB interface which people can download refrigerator operating data.
Super-Stable Cooling System
As the most proven ultra-low temperature refrigeration technology in the world, the cascade refrigeration technology has the characteristics of stable performance, easy maintenance and long service life.
Fast Cooling Performance
Cascade Cooling System uses 2-stage refrigeration cycles coupled with each other via heat exchanger to improve the refrigeration effect.
Advanced Thermal Insulation
Advanced insulation materials and interior design of multiple independent spaces make ULTs more efficient in Insulation and less heat loss, so as to achieve the purpose of better thermal insulation performance and energy saving.
Multi-Layer Sealing Design
Multi-layer sealing can save energy and keep heat outside ,better insulation helps keep the freezer cold last long, also reduce noise during the running .
International Certifications
ISO 9001, ISO 13485 & CE verified, fit standards international, very popular oversea.
SPECIFICATION

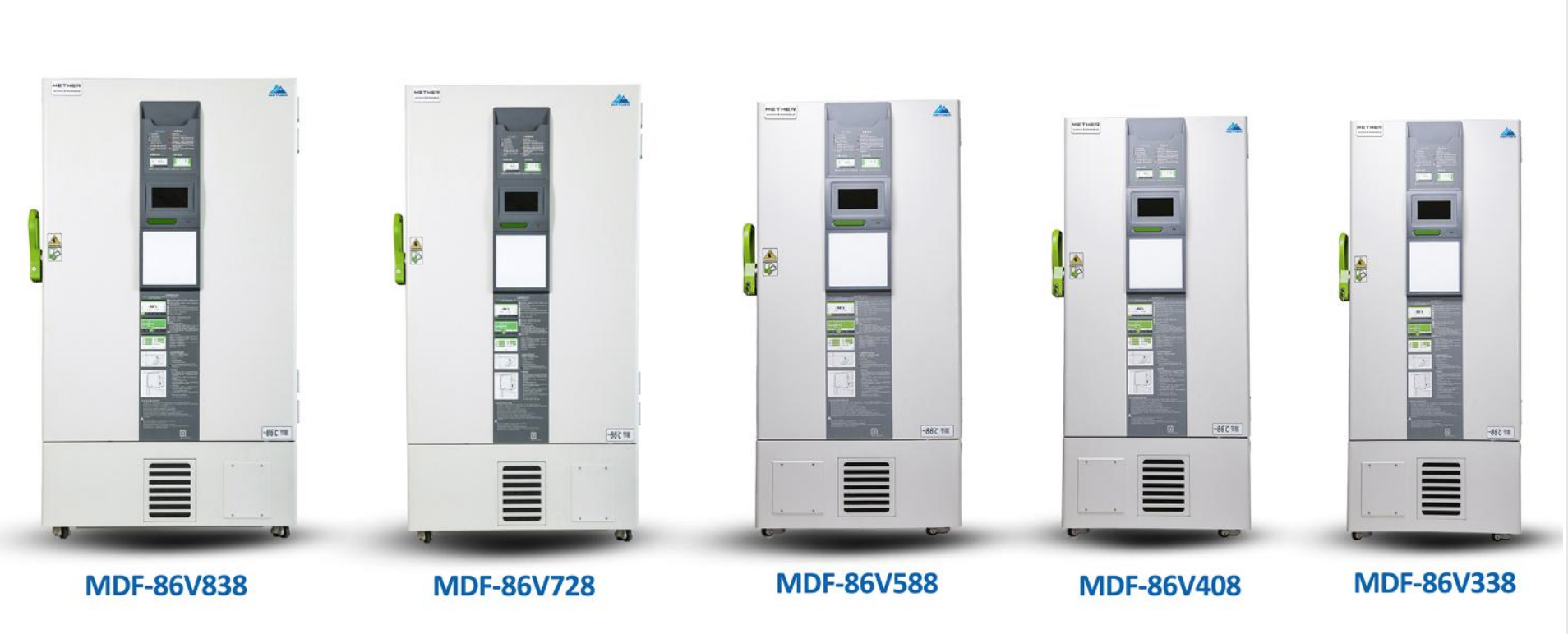

| Model | Shelf/Drawer QTY | Capacity(L/cu.ft) | Dismensions(W*D*H)(mm) | Insulation | Racks | Boxes(2 inches) | Samples Loading QTY (2ml) |
| MDF-86V338 | Stainless steel shelf/3 | 338/11.93 | 880*980*1940 | PURF | 12(4X4) | 192 | 19200 |
| MDF-86V408 | Stainless steel shelf/3 | 408/14.40 | 900*940*1940 | PURF | 16(5X4,4X4) | 288 | 28800 |
| MDF-86V588D | Stainless Steel Shelf/3 | 588/20.76 | 885*1100*1995 | VIP plus PURF | 16(5X5) | 400 | 40000 |
| MDF-86V728D | Stainless Steel Shelf/3 | 728/25.70 | 1260*890*2010 | VIP plus PURF | 12(5X4)+12(6X4) | 504 | 50400 |
| MDF-86V838D | Stainless Steel Shelf/3 | 838/29.59 | 1190*1045*2010 | VIP plus PURF | 24(5X5) | 600 | 60000 |
| Brand: | METHER |
| Temperature Range: | -40℃~-86℃ |
| Capacity: | 338L,408L,588L,728L,838L |
| Cooling Type: | Direct cooling |
| Display: | LCD display |
| Temp. Controller: | Microprocessor |
| Power Supply: | 220V/50Hz or 110V/60HZ |
Product Tags:
|
|

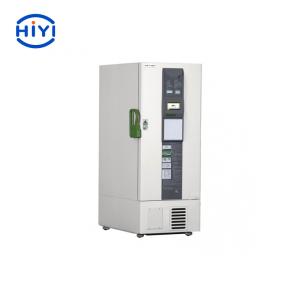

MDF-86V Series 588L Lab Freezer Cascade System ULT Refrigerator Images
|
